The M1 Carbine, officially the United States Carbine, Caliber .30, M1, played a pivotal role in American military history. Lightweight and versatile, this semi-automatic carbine was extensively used during World War II, the Korean War, and the Vietnam War.
Its development stemmed from the need for a more manageable firearm for support troops burdened by the heavier M1 Garand. This article explores the M1 Carbine’s development, design features, ammunition, and performance in combat, shedding light on why this firearm became a favorite among soldiers and saw widespread use beyond U.S. military service.
After World War II, this versatile firearm found its place not only in the hands of soldiers but also among paramilitary and police forces worldwide.
![M1 Carbine 2](https://i0.wp.com/cms.sofrep.com/wp-content/uploads/2024/08/M1-Carbine-2.jpg?resize=1920%2C1080&ssl=1)
Development History
Limitations of Weapons in the U.S. Arsenal
Before World War II, the U.S. Army Ordnance Department identified a need for a more portable weapon for support troops. And 9.5lbs, the standard M1 rifle was too heavy and cumbersome, limiting mobility. If you’ve ever carried a weapon all day, you know the meaning of “ounces equal pounds.” Soldiers carrying the M1 Garand often found it caught on brush or knocked their helmets askew. This prompted the development of a “light rifle” or carbine to better suit the needs of these troops.
Design Process
In 1938, the Chief of Infantry ordered the Ordnance Department to develop a light rifle. However, the formal requirement was not approved until 1940. Winchester was tasked with developing a suitable cartridge, resulting in the .30 Carbine round. Initially, Winchester didn’t submit a carbine design due to its focus on the Winchester G30 rifle.
David Marshall “Carbine” Williams was crucial in refining the design. After his release from prison for second-degree murder, where he had been working on a short-stroke gas piston design, he joined Winchester. His expertise helped transform the G30 into the more reliable and efficient .30 M2 Winchester Military Rifle. By May 1941, Williams and the Winchester team had reduced the rifle’s weight and improved its functionality.
The Army tested the Winchester prototype in August 1941, leading to further refinements. By October 22, 1941, the M1 Carbine was standardized for use. This was a collaborative effort, with contributions from multiple engineers and designers, including Williams, Fred Humeston, and Cliff Warner.
Ammunition

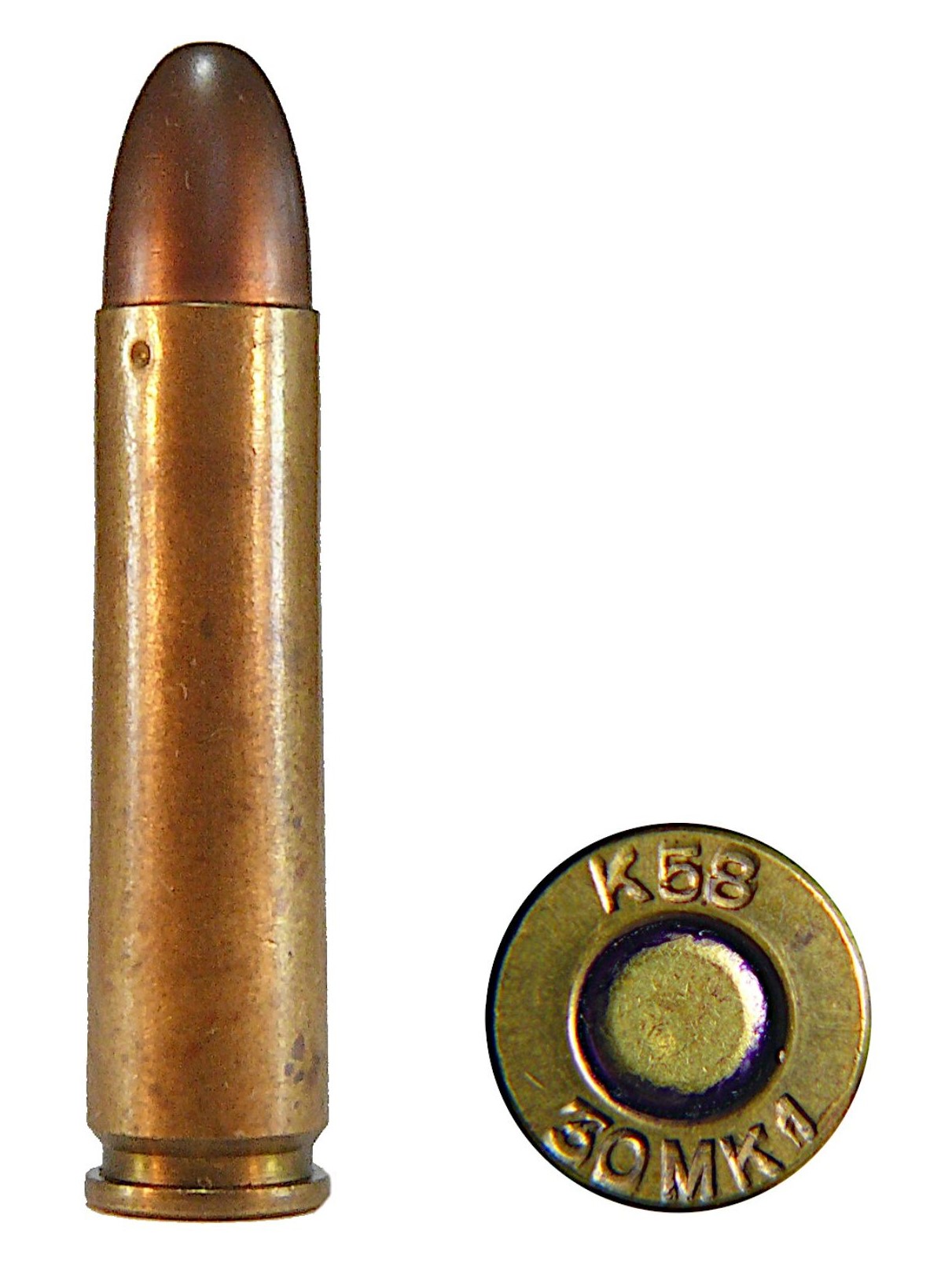

The .30 Carbine cartridge was a rimless version of the obsolete .32 Winchester Self-Loading cartridge. Its propellant took advantage of advances in chemistry, making it 27% more powerful. A standard .30 Carbine ball bullet weighed 110 grains, and the complete round had a muzzle velocity of 1,990 feet per second, delivering 967 foot-pounds of energy upon impact.
![.30 carbine](https://i0.wp.com/cms.sofrep.com/wp-content/uploads/2024/08/carbine.jpg?resize=529%2C704&ssl=1)
In comparison, the .30-06 Springfield round used by the M1 Garand was almost three times as powerful, while the .30 Carbine was twice as powerful as the .45 ACP used in the Thompson submachine gun. This balance of power and weight made the M1 Carbine an effective and versatile weapon. When you read this, remember one of the immutable laws of war, “Never try to stop a large caliber man with a small caliber bullet.”
Sights, Range, and Accuracy
The M1 Carbine was originally equipped with a basic flip sight, which had two settings: 150 yards and 300 yards. This simple design was adequate for initial use but soon proved insufficient in combat scenarios.
Feedback from the field indicated a need for more precise aiming capabilities. In response, an adjustable sight was introduced in 1944. This new sight featured settings for 100, 200, 250, and 300 yards and could be adjusted for windage, significantly improving the weapon’s accuracy.
At a distance of 100 yards, the M1 Carbine was capable of delivering shot groups between 3 and 5 inches. This level of accuracy made it a reliable close-range defensive weapon.
While the carbine’s maximum effective range was 300 yards, its practical, effective range was closer to 200 yards. Beyond this distance, the bullet experienced a significant drop, reducing its accuracy and effectiveness. This wasn’t designed to be a sniper rifle, but it could do the job in near-range combat. Despite this limitation, the M1 Carbine was well-suited for the close-quarters combat scenarios it was often deployed in.
Magazines
The M1 Carbine was originally issued with a straight 15-round box magazine. This magazine design was sufficient for the carbine’s semi-automatic fire capabilities and allowed soldiers to carry a reasonable amount of ammunition.
However, the introduction of the select-fire M2 Carbine in 1944 necessitated the development of a higher-capacity magazine, which led to the creation of the 30-round “Banana Mag.”
![banana mag](https://i0.wp.com/cms.sofrep.com/wp-content/uploads/2024/08/banana-mag.jpg?resize=574%2C677&ssl=1)
While increasing the carbine’s firepower, the 30-round magazine came with its own set of challenges. The additional weight of the loaded magazine caused reliability issues when used with the original M1 Carbine. The heavier magazine often failed to seat properly, leading to feeding problems and even the magazine falling out during operation.
To address these issues, the magazine catch was modified. The type IV magazine catch, designed for the M2 Carbine, was adopted for use with the M1 Carbine to ensure reliable feeding and retention of the 30-round magazines.
In the field, soldiers developed practical solutions for carrying extra ammunition. The most common accessory was a standard magazine belt pouch that could hold two additional 15-round magazines. This pouch was often slid over the stock for easy access.
With the advent of the 30-round magazines, troops began taping two magazines together in what became known as “jungle style.” This method allowed for quicker reloads but was eventually replaced by a more durable solution: the “Holder, Magazine T3-A1,” or “jungle clip,” a metal clamp that secured two magazines together without needing tape.
These adaptations highlight the versatility and field ingenuity of the troops using the M1 Carbine, ensuring that they could maximize the weapon’s effectiveness in various combat situations.
US Combat Use
World War II
The M1 Carbine was not intended as a primary combat weapon but soon gained popularity among various troops for its light weight (only 5.2 lbs unloaded) and adequate firepower.
![M1 Carbine 3](https://i0.wp.com/cms.sofrep.com/wp-content/uploads/2024/08/M1-Carbine-3.jpg?resize=1920%2C1080&ssl=1)
Delivered in mid-1942, it saw extensive use in the European Theater. Infantry companies typically received 28 M1 Carbines, distributed among company headquarters, weapons platoons, and rifle platoons.
Though praised for its size and weight, the M1 Carbine received mixed reviews in combat. Reports from airborne operations in Sicily in 1943 and later in 1944 highlighted some negative aspects, but it remained a valuable asset for many soldiers.
Korean War
During the Korean War, the select-fire M2 Carbine largely replaced submachine guns, while the semi-auto M1 Carbine was still widely used by support troops. The harsh Korean winters exposed some flaws, such as jamming issues due to weak return springs and freezing lubricants. Despite these challenges, the carbine remained a significant weapon in the U.S. arsenal.
Vietnam War
In Vietnam, U.S. military advisors first used the M1 and M2 Carbines in 1956, followed by Air Force Security Police and Army Special Forces.
![M1 Carbine 4](https://i0.wp.com/cms.sofrep.com/wp-content/uploads/2024/08/M1-Carbine-4.jpg?resize=1920%2C1080&ssl=1)
They were gradually replaced by the M16 starting in 1964. By the end of the war, an estimated 1.5 million carbines were left in Vietnam, marking the end of their widespread use in combat.
Final Verdict
The M1 Carbine played a crucial role in U.S. military history, serving from World War II through the Korean and Vietnam Wars. Developed collaboratively, this lightweight, semi-automatic carbine was designed to meet the needs of support troops who found the M1 Garand too cumbersome.
The result was an effective, versatile weapon that saw widespread use across various military roles. Despite some limitations, the M1 Carbine’s impact on the battlefield was significant, offering a balance of firepower and mobility. Its influence extended beyond the U.S. military, becoming a valuable asset to paramilitary and police forces worldwide.
