China Says Its J-35 Sensors Rival F-35s

The following piece first appeared on Warrior Maven, a Military Content Group member website.

Available specs of China’s several J-31 (FC-31) prototypes say the aircraft can hit speeds of Mach 1.8, meaning it is faster than an F-35, which flies at Mach 1.6 but not quite as fast as the Mach 2.2 speeds of the US F-22.

The F-22 also has the most advanced thrust-to-weight ratio in the world and is, therefore, able to maneuver, vector, and outrun enemy air-to-air and air-to-ground missiles in ways that are likely to be unrivaled.

In discussing the arrival of its J-35, the Chinese Government-backed Global Times says it is quite different from its preceding J-20. While able to carry large amounts of ordnance and operate at high altitudes up to 12 miles high, the J-20 is also listed as being capable of hitting speeds of Mach 2.0.

At the same time, the J-20 is larger than the J-35, capable of flying at high altitudes and carrying a large amount of ordnance.

While the J-20s speed might suggest it has an ability to vector and maneuver in the air, it does not seem clear how agile the J-20 might be, given its size and weight. Sure enough, the Chinese paper compares the J-20 to its J-35 and says its newer J-35 stealth fighter is lighter, faster, similar to an F-35, and engineered for “strong surface attack capabilities.”

“The J-35A has a different design than China’s first stealth fighter jet, the J-20. The J-20, with a canard wing configuration, is a heavy fighter jet with a focus on air superiority missions comparable with the US’ F-22, while the medium-sized J-35A uses a tailplane wing configuration similar with the US’ F-35 that also has strong surface attack capabilities,” the Global Times says.

The paper’s reference to the J-20 as a heavy fighter seems to make sense because, despite being a stealth 5th-generation aircraft, the jet can almost operate in bomb truck mode.

J-20 BOMB TRUCK

The J-20 does operate with a “bomb-truck” like capacity to deliver more ordnance than an F-35 on a single mission, as it can take off with 27,998 pounds of internal and external ordnance, compared with an F-35 in beast mode which can travel with 18,000 pounds of weapons. The J-31 can also travel with a heavy load of weapons, as its maximum take-off capacity is listed as being at 28,000 kg. A full internal and external weapons complement, however, would certainly compromise stealth by generating a larger and more precise radar return signal to adversary air defenses.

Stealth properties can be optimized if temperatures emitting from or surrounding the aircraft align with or somewhat match the surrounding temperature, thereby concealing or removing the thermal signature.

“The heavy J-20 and the medium-sized J-35A could perform complementary roles in joint missions… He noted that the medium-sized J-35A is likely to be less costly than the heavy J-20, so it can be produced in large numbers in a short period of time.”

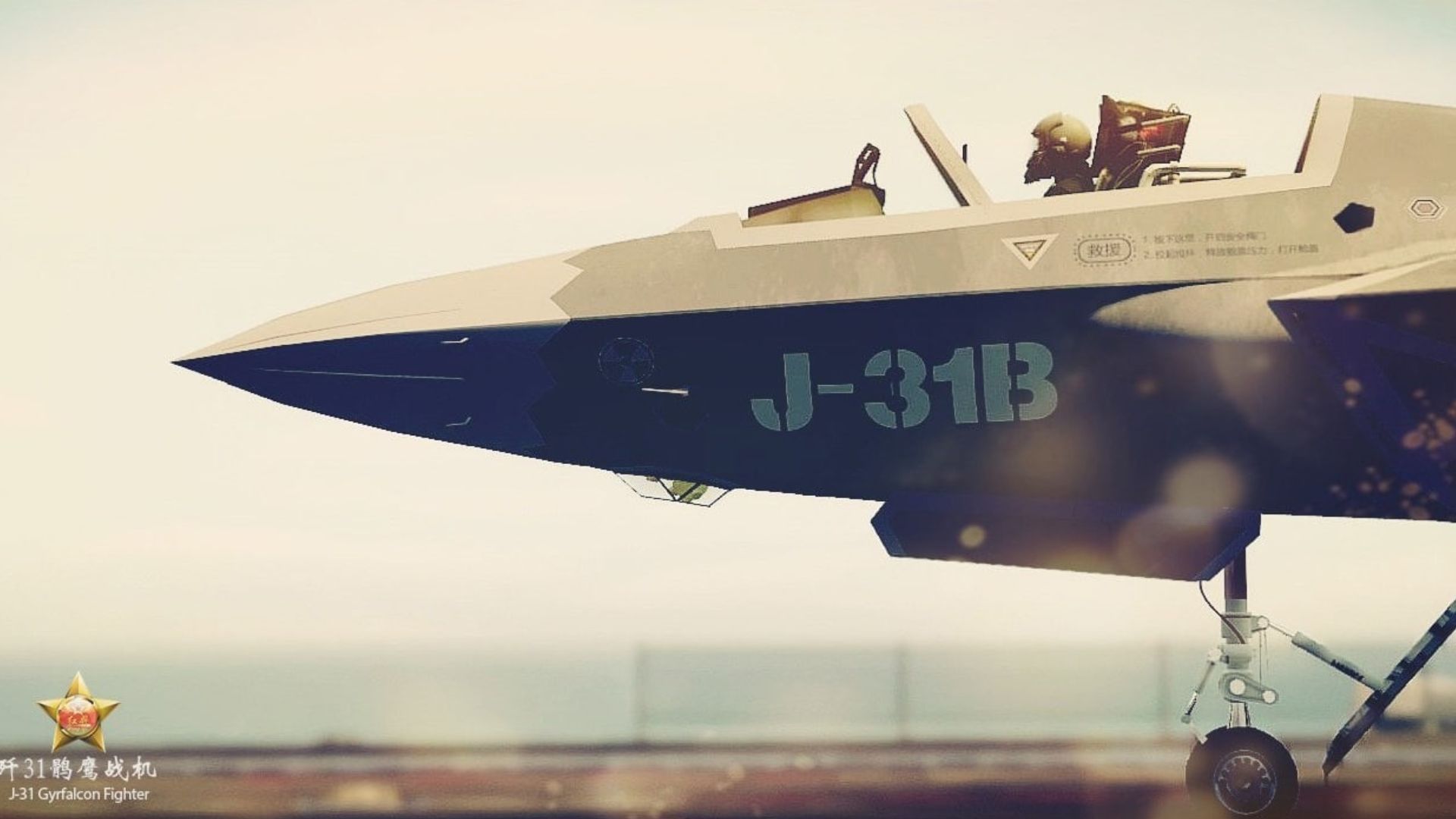

To the extent that it is useful to draw data from the specs of China’s J-31, a carrier-launched prototype that preceded the J-35, it seems significant that the J-31 is faster than an F-35 but not quite as fast as an F-22. Does this mean the J-35 will fly at similar speeds?

In terms of pure speed and thrust-to-weight ratio, there are some interesting observations to be made, as the J-20 is reported to be faster than the F-35, yet not as fast as the F-22 Raptor. The J-20 is listed as being able to operate at a max speed of Mach 2.0, and the J-31 is slated to have speeds up to Mach 1.8. Speed for both the J-20 and J-31 are less than the F-22s at Mach 2.25 speed, yet faster than the F-35s speed at Mach 1.6. The F-22 also has the most advanced thrust-to-weight ratio in the world and is, therefore, able to maneuver, vector, and outrun enemy air-to-air and air-to-ground missiles in ways that are likely to be unrivaled.

The structure also includes the kind of conformal, blended wing-body shape of many fifth-generation fighters, complete with rounded back-end exhaust emissions. The F-35 and F-22, by contrast, have singular, gradually sloped-horizontal wings. A shorter protruding yet aligned or sloped wing, followed by longer wings, might represent an attempt to improve stealth performance. A dual-wing formation could, it seems, interrupt the speed of the aerodynamic airflow on each side, potentially better-managing temperature.

J-35 VS F-35

There are not many specs or available information about China’s recently unveiled J-35 5th-gen stealth fighter, but the emergence of the aircraft’s photo does seem to offer some relevant information about its external configuration, and comments in the Chinese government-backed Global Times newspaper suggest the J-35 operates with a US F-35-like long-range sensing and targeting capacity.

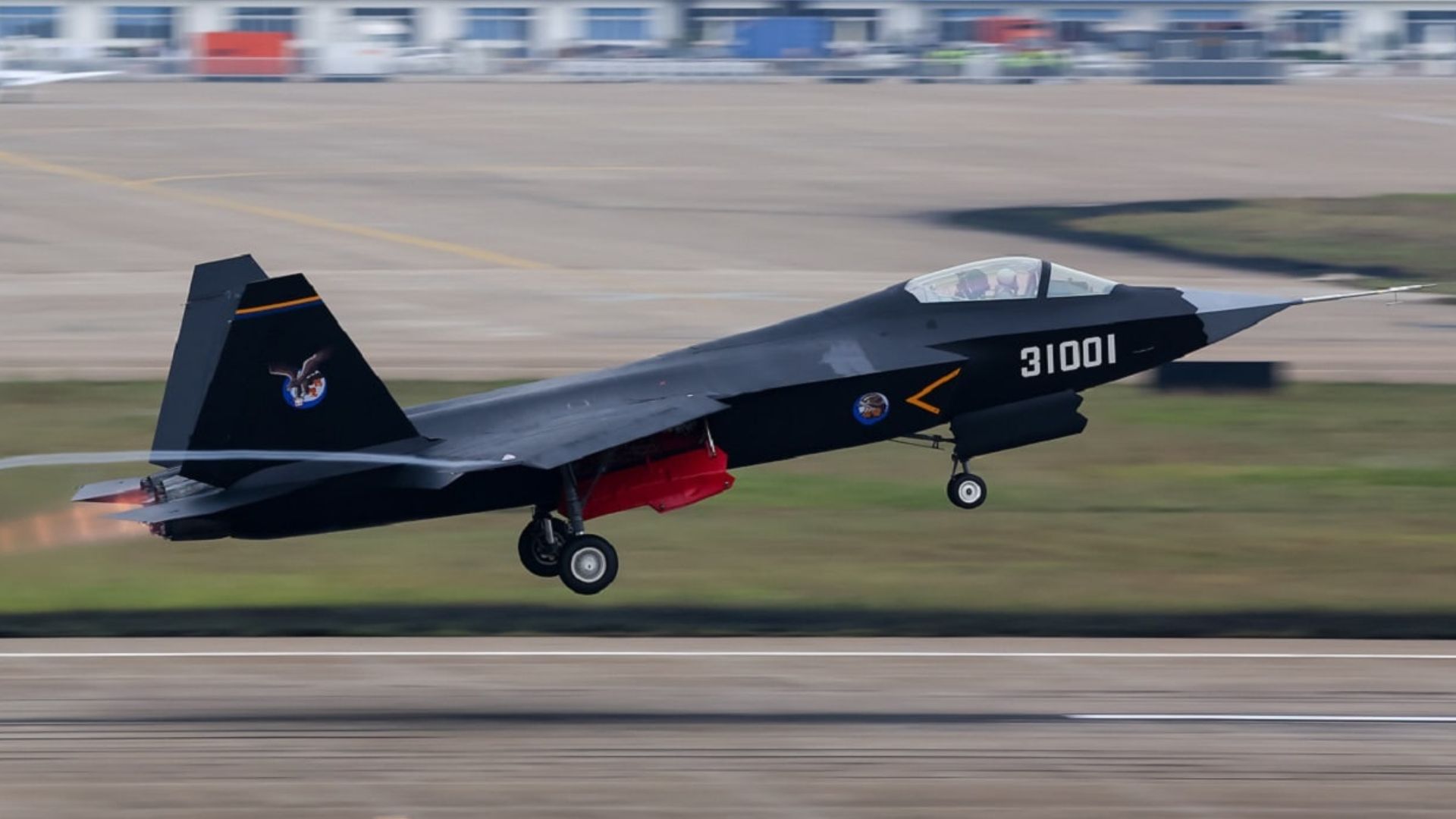

The emerging J-35 and its J-31 ocean-launched prototype predecessor do look quite similar to the US F-35, something a Chinese-government-backed newspaper specifically mentions. However, while the angles and contours of front parts of the fuselage, blended wing-body and inlets are arguably difficult to distinguish from a US F-35A, the Chinese J-35A has two engines, making it seem like more of a hybrid blend between the single engine US F-35 and dual engine F-22. The J-35’s external configuration does have an F-22-like front end as well, something not at all surprising given the longstanding discussion and documentation that the J-31 is a clear F-22 and F-35 copycat or “rip-off.”

Public press reports and even Congressional assessments (The US-China Economic and Security Review) suggest that, indeed, the PRC appears to have “stolen” some F-35 specs and designs. Certainly, the J-35 and its J-31 carrier-launched predecessor do appear to have stealth properties, such as the absence of protruding external structures likely to generate a return rendering to radar systems. The smooth fuselage devoid of sharp angles is yet another indication of stealth. At the same time, the successful execution of operational stealth involves an intricate blend of a variety of factors less visible to the human eye, such as the presence of radar-absorbing materials and the potential use of composite materials. Also, a photograph of the J-35 does not reveal the extent of its thermal management properties and ability to regulate the aircraft’s heat signature.

However, apart from some observable stealth features of the J-35, the largest questions related to its relative ability to compete with a US F-35 pertain to other key variables such as computing, sensing, targeting, and weapons. Aside from the singular question of stealth, the margin of difference between the J-35 and US-F-35 likely relates to sensing range, targeting, and drone-like surveillance capacity. The F-35, while of course stealthy, is heralded for its ability to see, target, and destroy enemy aircraft from standoff ranges where it is not itself detected. Several years ago, during a US Air Force Red Flag wargame and combat exercise, the US F-35 was able to see and destroy a group of 4th-generation aircraft at ranges where it remained undetected. This question of sensor range and image fidelity is a distinguishing element of the F-35, attributes made possible by advanced computing, sensing, targeting and weapons reach and precision.

Given these factors, the most significant characteristics of the J-35 published in the Global Times report relate to comments that the aircraft operates with a “first-detection,” “first-strike” capability enabling the jet to destroy enemies while remaining outside the detection range.

“The J-35A has significant advantages in terms of first detection, first strike, and securing operational advantages, Wang said. He elaborated that in combat against previous generations of aircraft, the J-35A can remain outside the effective detection range of the enemy, achieving one-way transparency of the battlefield situation and possessing overwhelming advantages that disrupt traditional air combat patterns,” the Global Times states.

The paper goes on to say that the J-35A can even achieve standoff sensing overmatch against aircraft of its “same generation,” suggesting it is designed to rival the F-35 in targeting and long-range attack capability. Could this mean that the J-35 is engineered with sensing and targeting equivalent or superior to the US F-35s Distributed Aperture System and Electro-Optical Targeting System? The Chinese paper seems to suggest the J-35 has this kind of ability.

“In engagements with aircraft of the same generation, it can leverage its strong lethality and survivability, along with advanced coordinated tactics within formations, to obtain accurate situational information and establish a rapid and stable closed-loop kill chain against the enemy, thereby seizing the initiative,” the paper says.

This is arguably the most significant element of the Chinese essay on its J-35A, as it raises the question as to whether it has an F-35-like ability to leverage long-range precision sensing and attack from standoff ranges. There may be little to no way to verify this claim; however, should the J-35 operate with sensing, computing, and targeting comparable or superior to the US F-35, that will likely be cause for concern at the Pentagon.
