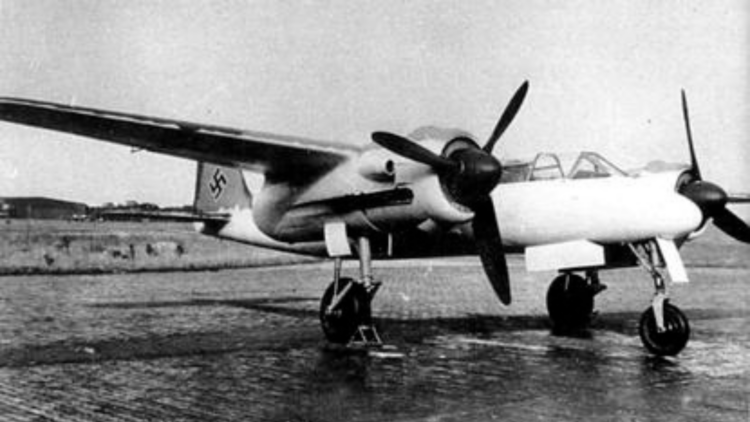

Prototype Ta 154 V1 (Image source: Wikimedia Commons)
The night sky over Germany in 1943 crackled with tension. British bombers, the de Havilland Mosquitos, weaved through the darkness, their deadly payloads a constant threat.
The Luftwaffe, desperate for a counter, turned to Kurt Tank, the brilliant mind behind the Focke-Wulf Fw 190 fighter. The answer, it seemed, lay not in brute force but ingenious adaptation.
Thus began the story of the Focke-Wulf Ta 154 Moskito, an ambitious project destined to become a cautionary tale of innovation crippled by scarcity and misfortune.
It was fast, maneuverable, and possessed an astonishing operational range.
Designer Kurt Tank, recognizing the need for a German equivalent, proposed a similar design philosophy.
A wooden airframe, he reasoned, would be lighter and quicker to produce than traditional metal construction – a critical advantage in the face of mounting pressure.
The name “Moskito” itself, a cheeky homage or perhaps a desperate plea of flattery, hinted at the inspiration behind the project.
The night sky over Germany in 1943 crackled with tension. British bombers, the de Havilland Mosquitos, weaved through the darkness, their deadly payloads a constant threat.
The Luftwaffe, desperate for a counter, turned to Kurt Tank, the brilliant mind behind the Focke-Wulf Fw 190 fighter. The answer, it seemed, lay not in brute force but ingenious adaptation.
Thus began the story of the Focke-Wulf Ta 154 Moskito, an ambitious project destined to become a cautionary tale of innovation crippled by scarcity and misfortune.
It was fast, maneuverable, and possessed an astonishing operational range.
Designer Kurt Tank, recognizing the need for a German equivalent, proposed a similar design philosophy.
A wooden airframe, he reasoned, would be lighter and quicker to produce than traditional metal construction – a critical advantage in the face of mounting pressure.
The name “Moskito” itself, a cheeky homage or perhaps a desperate plea of flattery, hinted at the inspiration behind the project.
At A Glance: Technical Specifications
Crew: 2
Wingspan: 52 feet 6 inches (16 meters)
Height: 11 ft 6 in (3.5 m)
EmptyWeight: 14,551 pounds (6,600 kilograms)
Max Takeoff Weight: 21,054 lb (9,550 kg)
Max Airspeed: 400 mph (650 km/h; 350 kn) at 23,260 ft (7,090 m) 332 mph (534 km/h; 288 kn) at sea level
Range: 848 mi (1,365 km; 737 nmi) at 23,000 ft (7,000 m)
Service Ceiling: 35,800 ft (10,900 m)
Armament: The Focke-Wulf Ta 154 packed a serious punch in the armament department. It boasted two 20mm MG 151/20 cannons, each loaded with 200 rounds, for a steady stream of firepower. Additionally, two 30mm MK 108 cannons were mounted in the nose, packing 110 rounds each for more concentrated attacks. It’s worth noting that only the Ta 154C variant added an extra layer of firepower with two fuselage-mounted Schräge Musik 30mm MK 108 cannons, further increasing its offensive capabilities.
However, the Moskito’s brilliance lay not just in its wooden skeleton but also in the innovative use of a special adhesive called Tego-Film. This wonder glue, a marvel of German engineering, possessed the remarkable strength needed to hold the lightweight wooden frame together.

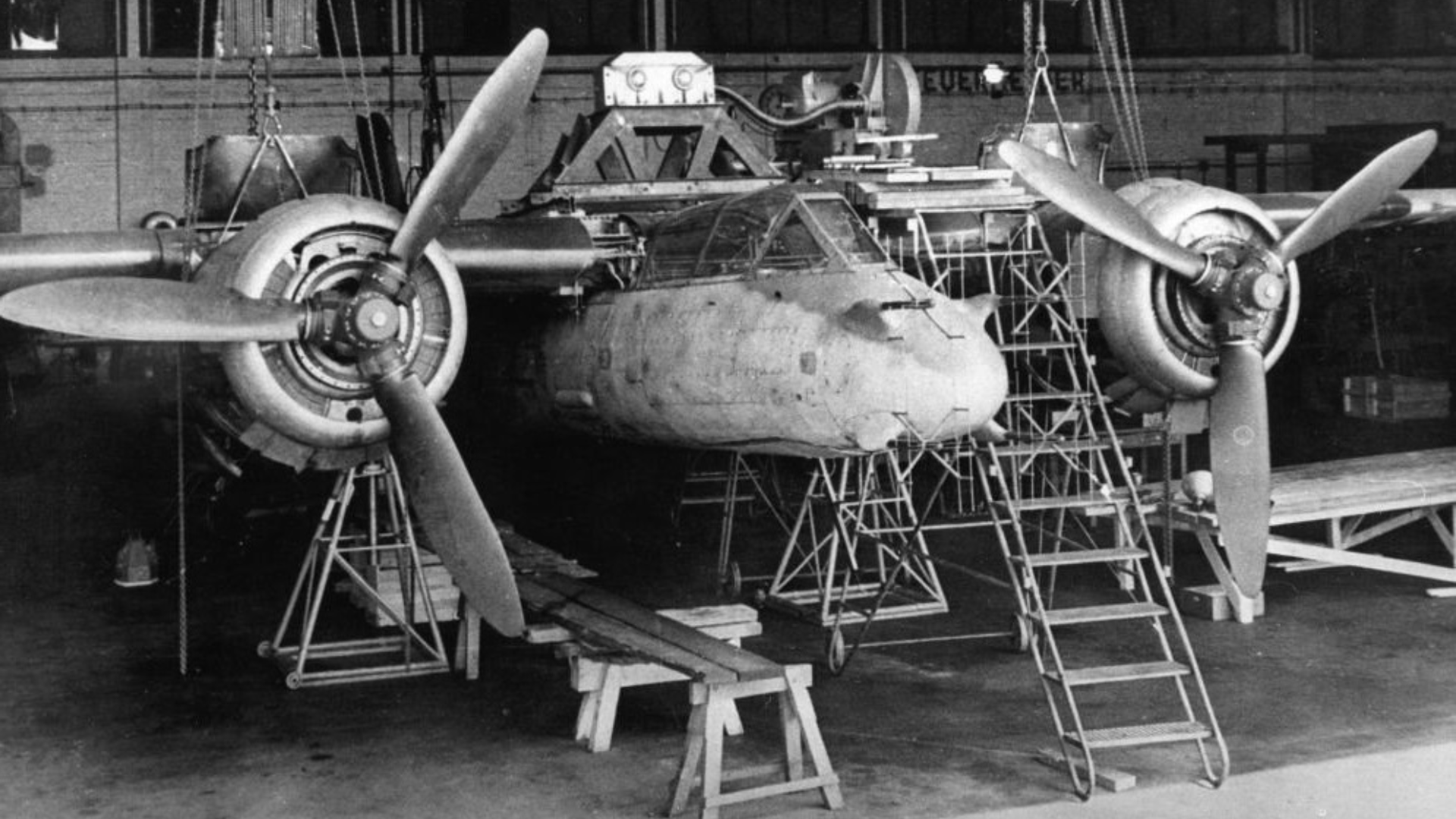

Focke-Wulf Ta 154 V2 circa early 1940s. (Image source: Wikimedia Commons)
Yet, fate intervened in a cruel twist.
In February 1943, the sole factory producing Tego-Film fell victim to a devastating Allied bombing raid. The loss was catastrophic.
The hastily chosen substitute glue, lacking the strength and reliability of Tego-Film, proved to be the project’s undoing. Test flights ended in disaster, with wings literally coming apart at the seams, a testament to the glue’s inadequacy.
Beyond the Glue: A Recipe for Disaster
The glue shortage was just one ingredient in the recipe for disaster.
Germany lacked access to the high-quality wood and powerful Merlin engines that gave the British Mosquito its edge.
The readily available German substitutes simply couldn’t match the strength-to-weight ratio of the British balsa wood and spruce, nor could they compete with the raw power of the Merlin engines—this disparity in materials translated into a significant performance gap.
While fast, the German Moskito couldn’t match the speed and agility of its British counterpart.
Furthermore, the project was plagued by internal squabbles and bureaucratic hurdles.
The Luftwaffe, constantly shifting priorities, wavered in its support for the Moskito program. Not to mention, rival aircraft manufacturers like Heinkel, with their own night fighter proposals, actively lobbied against the project.
These internal conflicts further hampered development and production.
A Dream Unfulfilled: The Demise of the Moskito
By 1944, the Moskito project was on life support.
The glue fiasco, material shortages, and underwhelming performance all combined to seal its fate.
The program was officially scrapped, leaving behind a legacy of unfulfilled potential. Only a handful of these wooden night fighters ever saw service, and their impact on the war was minimal at best.
Today, no remaining examples exist, a stark reminder of the project’s tragic demise.
A Legacy of Innovation and Missed Opportunities
The story of the Focke-Wulf Ta 154 Moskito offers a compelling glimpse into the desperate scramble for technological advantage during World War II.
It highlights the crucial role of resources and logistics in turning wartime dreams into aerial dominance.
While the Moskito’s innovative use of wood showcased remarkable German engineering ingenuity, it was ultimately brought down by a series of unfortunate events and the harsh realities of wartime scarcity.
The Moskito serves as a poignant reminder that even the most ingenious designs can be grounded by the harsh realities of war.
