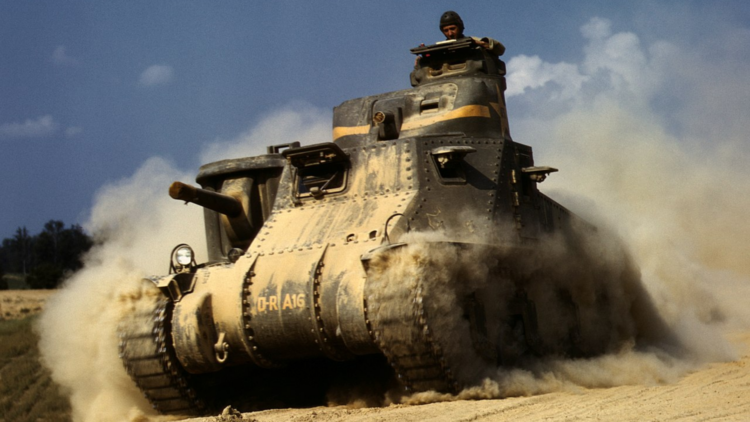

While the core design remained the same, the US Army and the British, a crucial recipient under the Lend-Lease program (1941), each had their own variant.
The American version, christened the “Lee” after the Confederate General Robert E. Lee, was the first to roll off production lines.
The British, however, requested modifications to accommodate their radios. Their variant, dubbed the “Grant” after Union General Ulysses S. Grant, featured a redesigned turret.
This seemingly minor difference highlighted the hurried nature of the M3’s design, a design that prioritized expediency over long-term optimization.
M3 Lee (US) vs M3 Grant (British) – Technical Specifications
- Dimensions (length x width x height): 18.5 ft x 8.7 ft x 10.3 ft (both)
- Weight: 30 tons (both)
- Machine Guns: 2-4 Browning M1919A4 (depending on variant; both)
- Crew: 7 (Lee); 6 (Grant)
- Engine: Wright-Continental R975 EC2 400 hp (Lee); Wright-Continental R975 EC2 400 hp (Grant)
- Transmission: Mack Synchromesh (5-speed forward, 1-speed reverse; both)
- Armor (hull front, turret front, sides, rear): 51mm (both)
- Armor (hull sides & rear): 38mm (both)
In summary, the M3 Lee and M3 Grant were essentially the same tank with the exception of crew size due to the British radio placement and potentially minor variations in machine gun configuration depending on specific variants.
A Baptism by Fire: Strengths and Shortcomings
Despite their unconventional appearance, the M3s proved surprisingly effective in their initial baptism by fire.

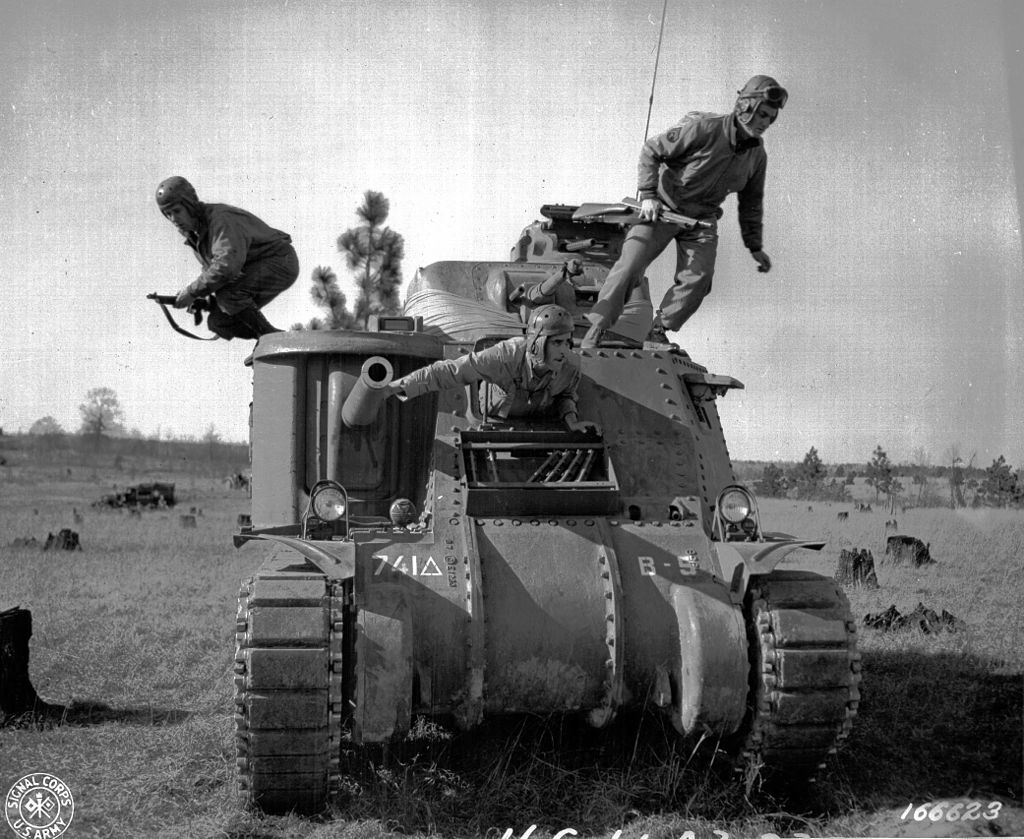

The 75mm gun packed a punch, capable of knocking out most early German tanks.
The thick armor, though not impenetrable, offered some measure of protection for the crew of seven (US) or six (British).
However, the limitations of the design soon became apparent.
The high profile of the Lee and Grant tanks made them easy targets on the battlefield.
The sponson mount, while offering a wider firing arc than a traditional turret, severely restricted the 75mm gun’s ability to traverse.
Furthermore, the riveted construction, a holdover from earlier tank designs, proved less resilient than the welded construction soon adopted by most armies.
Concentrated fire could rip through the rivets, sending deadly shrapnel into the crew compartment.
M3 Tanks: A Stepping Stone to Victory
As the war progressed and German tanks grew heavier and more lethal, the M3s’ limitations became increasingly glaring.
By 1943, they were being phased out in favor of the M4 Sherman, a more agile and versatile design with a 75mm gun housed in a fully traversable turret.
However, to relegate the M3s to footnotes in history would be a disservice. They were the essential stopgap titans, buying valuable time for American tank design to catch up.
The M3s provided the Allies with a fighting chance in the early days of the war, particularly in the North African campaign, where they faced German forces head-on.
The crews who manned these tanks, facing withering fire and claustrophobic conditions, deserve recognition for their courage and determination.
The M3 Lee and Grant were not perfect tanks. They were a product of a desperate time, a testament to American ingenuity and the urgency of the hour.
But in the grand tapestry of World War II, they played a vital role, paving the way for the juggernaut that would be the Sherman and ultimately contributing to Allied victory.
—
