In October 2006, aircraft manufacturer Piper Aircraft embarked on an ambitious project to address the emerging very light jet (VLJ) category in the private aviation market. Dubbed the Piper PA-47 PiperJet, this single-engine VLJ aimed to compete with the popular twin-engine Eclipse 500 and Cessna Mustang by offering a unique design and simplicity.

However, despite the initial success, the flurry of pre-orders, and the creation of a single prototype, the PiperJet encountered numerous obstacles during its development and was ultimately nearly canceled five years later. As a result, it remained a concept that never advanced beyond the prototype stage, leaving the skies of full-scale production unexplored.

A Promising Start Turns To Disappointment

To cut the story short, because of its airframe configuration design. Long story; continue reading.

Recognizing an untapped opportunity in the VLJ category, Piper Aircraft set out to develop the Piper PA-47 with a design inspired by its popular PA-46 propeller aircraft series.

The PA-47 aircraft boasted a similar cross-section to its predecessor but with an increased length of 4 feet (1.2 meters). It offered spacious accommodations for up to seven passengers and a pilot, with an impressive cruise speed of 360 knots at a maximum altitude of 35,000 feet. Additionally, the PiperJet featured a maximum range of 1,300 nautical miles (2,400 kilometers) with a full-fuel payload of 800 pounds fitted with a Williams FJ44.

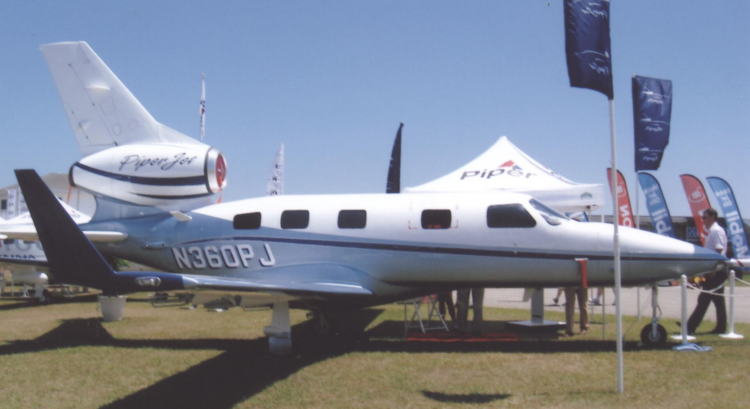

What made Piper PA-47 stand out compared to other VLJs was its competitive pricing, set at $2.199 million in 2006 ($3.44 million, 2023), which attracted considerable attention, as reflected by the 180 pre-orders received by Piper Aircraft by February 2007. By 2008, the manufacturer was able to produce a single prototype of the aircraft and joined various air shows, stealing more aviation enthusiasts’ attention. It was a period of sanguinity for the PiperJet project, with clients anticipating its arrival and in-service date in early 2010.

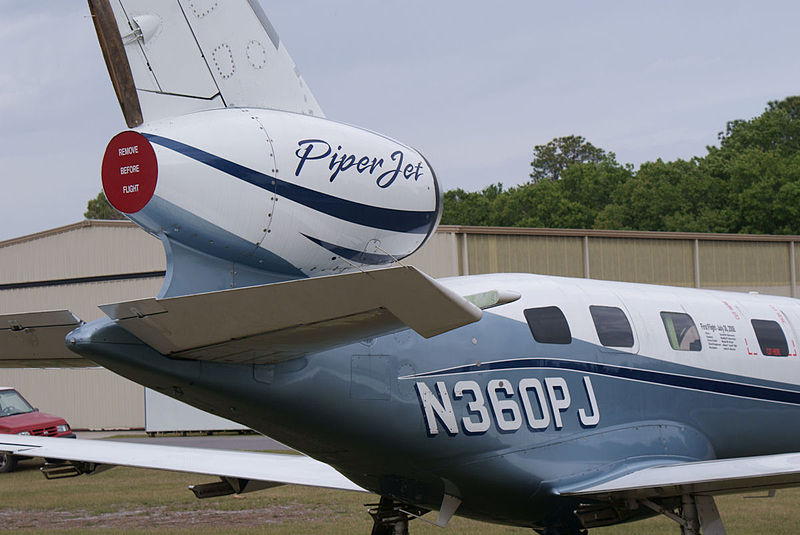

However, despite its early success, the PiperJet faced significant design challenges threatening its viability. The engine placement above the aircraft’s center of gravity created an issue of highly stabilizing power, resulting in a downward push on the nose. Pilots voiced their concerns, prompting Piper Aircraft to implement an automatic pitch trim system aimed at coordinating the horizontal stabilizer angle of incidence. Subsequently, the manufacturer opted for a vectored thrust nozzle, simplifying the manufacturing process and reducing the aircraft’s weight.

Maneuvering Efforts To Piper Altaire

Despite these efforts, the underlying design flaws persisted, casting shadows over the project’s future. So, after four years of development salvage, the aircraft manufacturer decided to call off the program altogether. Instead, Piper Aircraft introduced the Piper Altaire as a better, more promising alternative.

The Altaire featured a larger fuselage and offered seating for five passengers and one pilot, with a more spacious baggage space. Equipped with the Williams International FJ44-3AP engine, the aircraft could reach a top cruise speed of 320 knots and a ceiling altitude of 35,000 feet while staying true to the regular PiperJet’s maximum range. Furthermore, this successor of the Piper PA-47 had an airframe design that compensated for its nose-down pitch tendencies.

Like the Piper PA-47, the Altaire had that promising allure that convinced previous customers of the former to switch to the newer version. With its upgraded features, though, the Altaire had quite a pricey tag at $2.6 million in 2010 ($3.09 million in 2023).

Grounded For Good

But then the Great Recession came whirling in, flipping the economy to its worst ever since the Great Depression. Coupled with the firm rejection from the Federal Aviation Administration (FAA)—which opposed certifying a single-engined jet for flights at an altitude of up to 35,000 feet—the Piper Altaire project likewise eventually faced its doom. Unable to get through the seemingly never-ending obstacles and setbacks, Piper Aircraft had to abandon both its PiperJet and Altaire dreams, leaving a once brimming with potential, only to find itself forever grounded.

While the aircraft didn’t make it to the prototyping stage, the Piper PA-47 PiperJet’s journey is a compelling tale of ambition, innovation, and the inherent risks involved in pioneering ventures. Despite its promising design and early success, the project’s airframe configuration issues proved insurmountable, ultimately ceasing the project.

However, the legacy of the PiperJet lives on as a testament to the ever-evolving nature of the aviation industry, where dreams take flight and sometimes, sadly, come to rest on the runway of unfulfilled potential.

—
