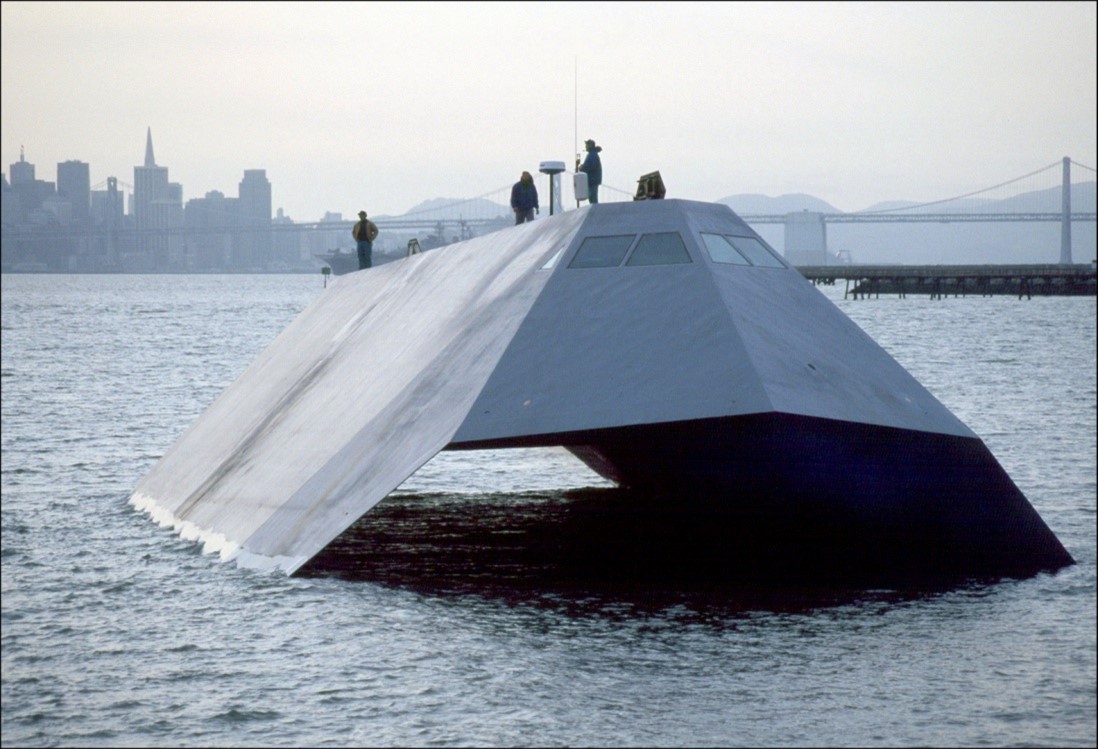

The Polaroid autofocus system works with a sonar sensor. This shouldn’t be surprising. The discovery led to the design of stealth surface ships. Lockheed built a prototype stealth ship called the Sea Shadow (see Figure 2). Now, stealthy features are incorporated into most modern aircraft and surface combatants.
With the development of ultra-quiet submarines, antisubmarine platforms began relying less on passive sonar. They haven’t stopped using it, they just know it’s not as effective and has to be augmented by active search. Submarine designers have begun to incorporate stealth features into their hulls.
Diesel-electric submarines are very quiet. In a world where nuclear submarines are the superstars, these smaller “conventional” boats are often underestimated. They are cheaper than nuclear subs, and are becoming increasingly sophisticated and capable. They are particularly effective in shallower seas, littoral regions, and over shorter ranges. Germany, Norway and Sweden all built conventional diesel-electric submarines for use in the Baltic. Iran and other middle eastern countries also operate diesel-electrics.
The Germans and Norwegians collaborated on the Type 212 series of diesel-electric submarines. A number of these hulls were also built for the Italian Navy. These boats, in particular the German and Italian units, were built with bespoke features to assist in naval special operations. For example, in some units, an enlarged torpedo tube was incorporated to fit special operations equipment. In another, a piggyback hangar was designed to carry something like our SEAL Delivery Vehicle. Other models had side-mounted special operations pods.

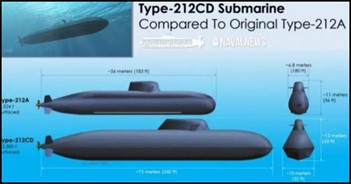

The Italians wanted a larger boat to operate in the Mediterranean. The Germans thought that was a good idea. They collaborated with the Norwegians to develop the Type 212CD (“Common Design”). The CD was larger than other Type 212 variants. It was also longer. Of particular interest, it was designed with a stealthy hull to help it defeat active sonar. Look at its cross-section in Figure 3.
Compare the cross-section of the Type CD to that of the Type A. The Type CD is at the bottom right of Figure 3. It is immediately apparent that its hull has a faceted, diamond-shaped appearance. This design has been optimized to minimize the submarine’s “Target Echo Strength,” a measure of sonar effectiveness comparable to an aircraft’s radar cross-section.

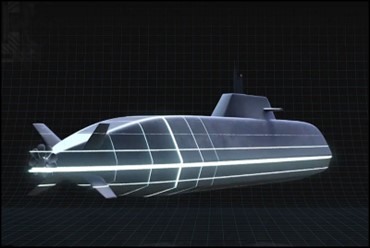

Figure 4 shows a view of the Type 212CD from the starboard quarter. It illustrates the flat, slab-like facets of the hull.
This video summarizes the development of stealth subs and the Type 212CD:
Germany is not alone in incorporating stealth features into newer hulls. Both Russia and the United Kingdom have nuclear submarines with stealthier designs. The United States, with the caterpillar drive built into the newest Virginia class, has yet to incorporate stealth into its hull designs.

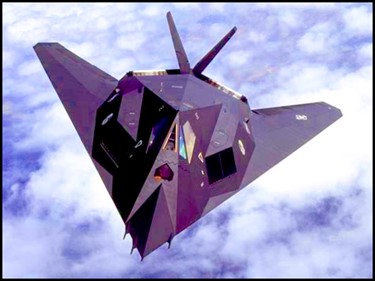

Of course, there are tradeoffs. The F-117 is not the most aerodynamic aircraft. A stealthy hull like that of the Type 212CD may give up in speed what it gains in stealth.
We can be sure of one thing. Work will continue in the fields of both stealth and detection. The major players cannot afford to fall behind.
