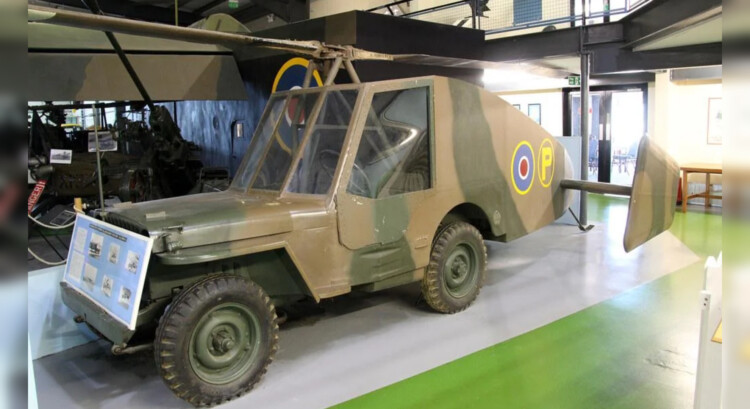

In the midst of World War II, a brilliant and audacious idea took flight, quite literally on the British frontlines, in the form of the Hafner Rotabuggy. Conceived by Austrian aviation engineer Raoul Hafner and developed by the British Airborne Forces Experimental Establishment, this remarkable creation aimed to provide airborne forces with a unique form of ground transportation. Let us delve into the captivating story of the Hafner Rotabuggy, where a humble jeep took to the skies, forever altering the landscape of airborne operations.
From Jeep to Autogyro: The Birth of the Rotabuggy
The concept of the Rotabuggy stemmed from Hafner’s successful development of the Rotachute, which utilized a rotor instead of a parachute to enable pinpoint landings of troops in enemy territory. This achievement led to the daring proposal of applying similar principles to larger loads, specifically the idea of a rotor-equipped jeep and tank. Basically, it was a modified Willys Truck 4×4 model MB, commonly known as a Jeep, transformed into an autogyro.
The initial flight trials involved towing the Rotabuggy behind a Whitley bomber, but the experience proved arduous for the pilot, who had to grapple with a continuously thrashing control column within the cockpit. On occasions when the tow cable remained attached, heart-stopping moments ensued as the Rotabuggy, teetering on the edge of a stall, touched down after the tow plane departed and the driver assumed control. Despite these challenges, the concept of using rotors for pinpoint landings in enemy territory, as demonstrated by the successful development of the Rotachute, inspired the idea of applying the principle to larger loads.
The Rotabuggy Takes Flight: Trials and Triumphs
The development of the Rotabuggy involved loading a Jeep with concrete and dropping it from various heights to determine the amount of impact it could withstand. The successful tests revealed that the vehicle could safely absorb forces of up to 11g. Equipped with a two-bladed rotor measuring 12.40 meters in diameter, a streamlined tail fairing, tailplane, and twin fins, the Rotabuggy underwent further trials.

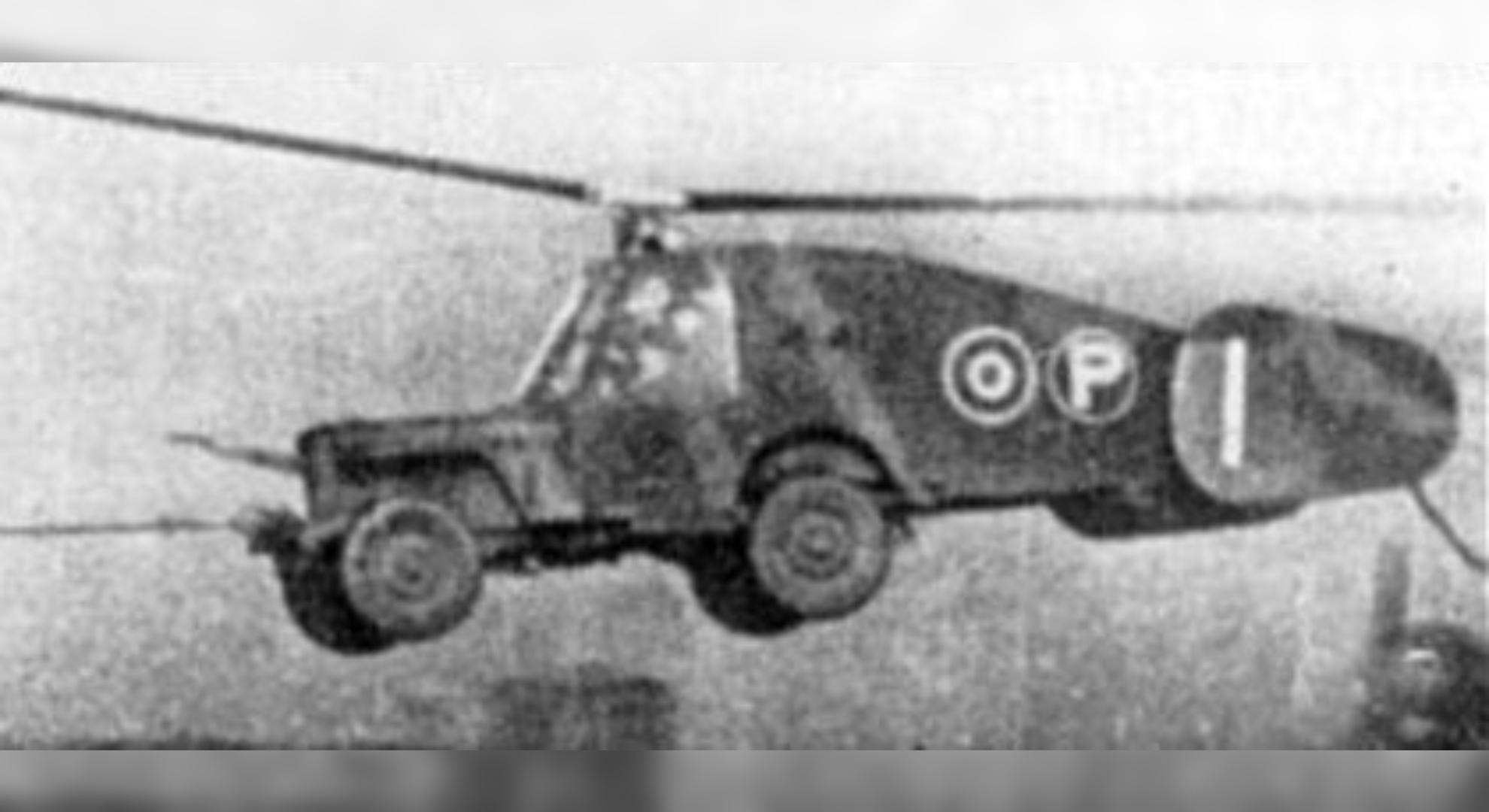

Initially towed along the runway at high speeds behind a supercharged Bentley, it eventually achieved airborne speeds of up to 105 kilometers per hour, indicated airspeed (IAS). On November 16, 1943, the Rotabuggy took its maiden flight to the skies for the first time at Sherburn-in-Elmet near Leeds. The initial test behind the Whitley bomber left much to be desired, with the control column thrashing about and the pilot exerting all his strength to maintain control. However, subsequent refinements addressed these issues, and the Rotabuggy’s handling and flying qualities were eventually deemed “highly satisfactory.”
A Symbol of Innovation
Despite its promising development, the Rotabuggy never saw active service. The availability of vehicle-carrying gliders provided a safer and more efficient means of transporting jeeps and equipment to the battlefield. Another of Hafner’s visionary ideas, the Rotatank, a rotor-equipped modification of the Valentine tank, remained confined to the drawing board. Nevertheless, the Rotabuggy stands as a testament to the ingenuity and resourcefulness of the British military during World War II.
Facts and Figures: Unveiling the Technical Details
The Rotabuggy boasted a gross weight of 1,411 kilograms, with the empty jeep weighing 964 kilograms and the rotor unit and tail weighing 249 kilograms. It was designed to reach a maximum speed of 241 kilometers per hour, with estimated rates of descent ranging from 4.9 to 10 meters per second. The minimum take-off and landing speed was 58 kilometers per hour, and the primary and maximum rotor speeds at sea level were 230 and 260 revolutions per minute, respectively.
In the midst of World War II, a brilliant and audacious idea took flight, quite literally on the British frontlines, in the form of the Hafner Rotabuggy. Conceived by Austrian aviation engineer Raoul Hafner and developed by the British Airborne Forces Experimental Establishment, this remarkable creation aimed to provide airborne forces with a unique form of ground transportation. Let us delve into the captivating story of the Hafner Rotabuggy, where a humble jeep took to the skies, forever altering the landscape of airborne operations.
From Jeep to Autogyro: The Birth of the Rotabuggy
The concept of the Rotabuggy stemmed from Hafner’s successful development of the Rotachute, which utilized a rotor instead of a parachute to enable pinpoint landings of troops in enemy territory. This achievement led to the daring proposal of applying similar principles to larger loads, specifically the idea of a rotor-equipped jeep and tank. Basically, it was a modified Willys Truck 4×4 model MB, commonly known as a Jeep, transformed into an autogyro.
The initial flight trials involved towing the Rotabuggy behind a Whitley bomber, but the experience proved arduous for the pilot, who had to grapple with a continuously thrashing control column within the cockpit. On occasions when the tow cable remained attached, heart-stopping moments ensued as the Rotabuggy, teetering on the edge of a stall, touched down after the tow plane departed and the driver assumed control. Despite these challenges, the concept of using rotors for pinpoint landings in enemy territory, as demonstrated by the successful development of the Rotachute, inspired the idea of applying the principle to larger loads.
The Rotabuggy Takes Flight: Trials and Triumphs
The development of the Rotabuggy involved loading a Jeep with concrete and dropping it from various heights to determine the amount of impact it could withstand. The successful tests revealed that the vehicle could safely absorb forces of up to 11g. Equipped with a two-bladed rotor measuring 12.40 meters in diameter, a streamlined tail fairing, tailplane, and twin fins, the Rotabuggy underwent further trials.
Initially towed along the runway at high speeds behind a supercharged Bentley, it eventually achieved airborne speeds of up to 105 kilometers per hour, indicated airspeed (IAS). On November 16, 1943, the Rotabuggy took its maiden flight to the skies for the first time at Sherburn-in-Elmet near Leeds. The initial test behind the Whitley bomber left much to be desired, with the control column thrashing about and the pilot exerting all his strength to maintain control. However, subsequent refinements addressed these issues, and the Rotabuggy’s handling and flying qualities were eventually deemed “highly satisfactory.”
A Symbol of Innovation
Despite its promising development, the Rotabuggy never saw active service. The availability of vehicle-carrying gliders provided a safer and more efficient means of transporting jeeps and equipment to the battlefield. Another of Hafner’s visionary ideas, the Rotatank, a rotor-equipped modification of the Valentine tank, remained confined to the drawing board. Nevertheless, the Rotabuggy stands as a testament to the ingenuity and resourcefulness of the British military during World War II.
Facts and Figures: Unveiling the Technical Details
The Rotabuggy boasted a gross weight of 1,411 kilograms, with the empty jeep weighing 964 kilograms and the rotor unit and tail weighing 249 kilograms. It was designed to reach a maximum speed of 241 kilometers per hour, with estimated rates of descent ranging from 4.9 to 10 meters per second. The minimum take-off and landing speed was 58 kilometers per hour, and the primary and maximum rotor speeds at sea level were 230 and 260 revolutions per minute, respectively.
Ingenious Design and Technical Features
The Rotabuggy featured a streamlined tail fairing with twin rudderless fins, which were later enlarged to ensure rotor clearance. Additional equipment included a rotor tachometer and basic flight instruments borrowed from gliders. The strength of the jeep’s structure was tested by filling it with concrete and subjecting it to drops from various heights, proving its ability to withstand impacts of up to 11g. The Rotabuggy was crewed by two individuals, one driving using the regular controls and the other controlling the rotor through a hanging column attached to the cabin roof.
The legacy of the Hafner Rotabuggy lives on in the annals of aviation history as a daring and imaginative attempt to bring mobility and versatility to airborne forces during a time of intense conflict. Although the Rotabuggy never made its mark on the battlefield, it’s ambitious design and groundbreaking principles inspire innovation in aviation and military technology to this day.
Indeed, Raoul Hafner’s visionary contributions extended beyond the Rotabuggy. Although his ambitious Rotatank project, which involved modifying a Valentine tank with a rotor, never left the drawing board, Hafner’s legacy as an aviation pioneer remains intact. The success of the Rotachute and the innovative concepts behind the Rotabuggy demonstrated his unwavering dedication to pushing the boundaries of aviation technology and contributing to the ongoing pursuit of excellence in engineering and aeronautics. Moreover, its emergence stands as a testament to the innovative thinking and experimental spirit that characterized wartime engineering.
