Claymore Mines: A Legendary Directional Weapon That Reshaped Modern Warfare

In the annals of modern warfare, certain weapons stand out not just for their lethal efficacy but for their innovation and lasting impact on military tactics. The Claymore mine, a directional anti-personnel mine that gained legendary status during the latter half of the 20th century, is undoubtedly one such weapon. Rising to prominence during the tumultuous days of the Vietnam War, the Claymore earned its reputation as a game-changer, capable of repelling assaults and initiating devastating ambushes.

A New Direction in Warfare: The Claymore’s Distinctive Design

Unlike traditional land mines that explode upwards, the Claymore mine is designed with the Misznay-Schardin effect in mind. This innovative concept, discovered during World War II by Hungarian and German scientists, involves directing the explosive energy forward using a heavy backing surface, like a steel plate. The result is a directional blast that propels most of its force toward the intended target, minimizing the danger behind it.

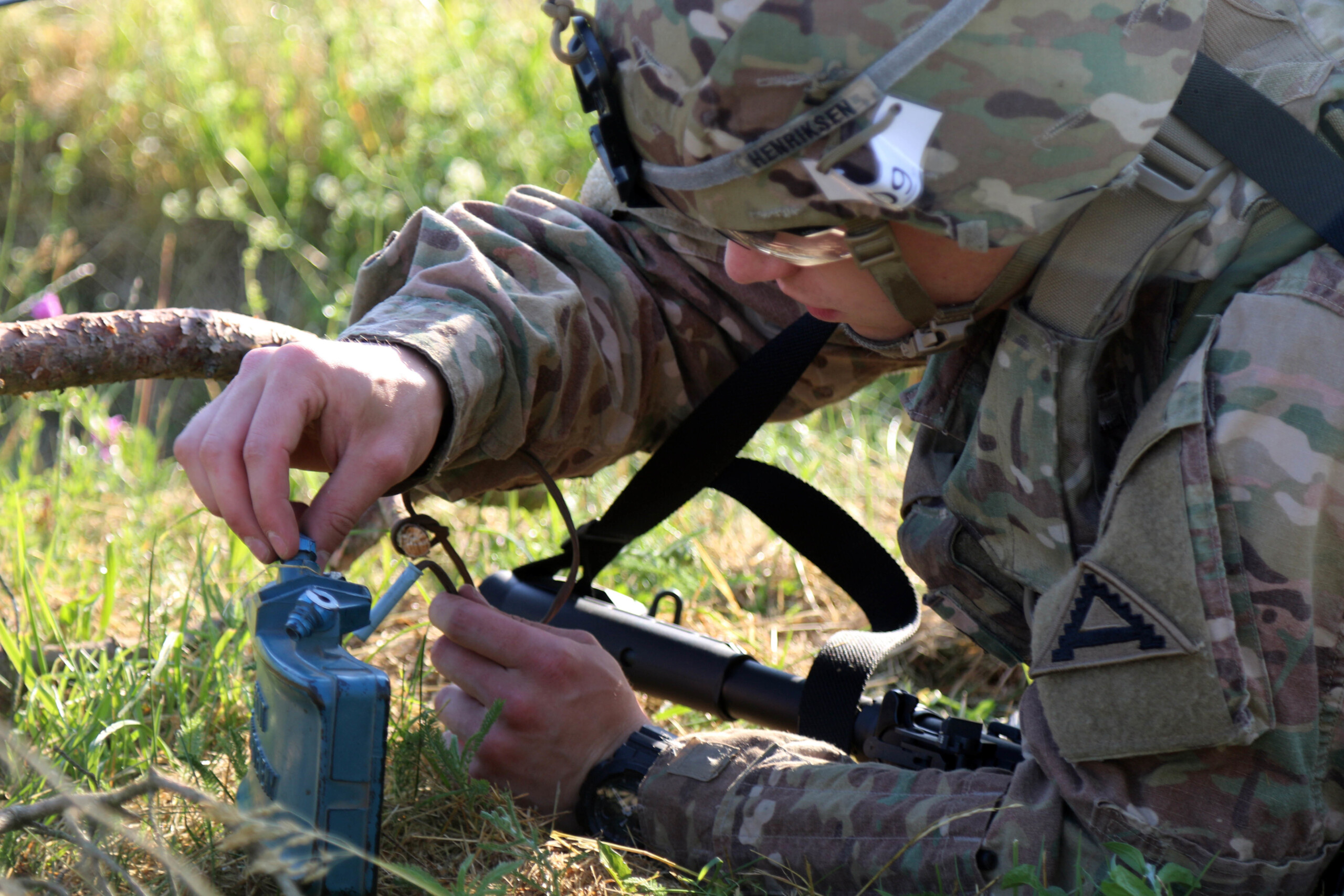

A soldier sets a claymore mine during training — An infantryman emplaces a claymore mine in 2017. (Image source: DVIDS)

Imagine you have a powerful flashlight that emits an intense beam of light. If you turn on the flashlight and point it straight ahead, the light will illuminate everything in its path in that direction. Now, instead of the light dispersing in all directions, imagine if you could somehow focus that light into a narrow beam that only shines forward. This concentrated beam would allow you to direct the light precisely where you want it to go.

In a similar way, a directional mine works by focusing the explosive force and fragments in a specific direction rather than allowing the explosion to disperse in all directions. This groundbreaking concept eventually led to the creation of the M18 Claymore and changed the face of warfare.

Iconic Design, Ingenious Functionality

The Claymore’s physical design is recognizable to people around the world. Its curved rectangular shape and distinctive green plastic construction make it stand out on the battlefield. However, the words “FRONT TOWARD ENEMY” embossed on its surface truly capture attention. This clear warning eliminates any possibility of user error and reinforces the mine’s purpose – to shred through opposition just as the Scottish Claymore sword cut through its enemies.

M18 Claymore mine for detonation — Important words to remember: “Front Toward Enemy”. (Image source: DVIDS)

The operational mechanics of the Claymore are ingeniously simple. The user points the mine using a rudimentary sight on top and secures it with twin scissor-like anchors that can either be pressed into the ground or stand freely. A wire is extended to a safe distance back to the user’s position, where a detonator in the form of a clacker is squeezed to trigger the explosion. The result is a devastating release of plastic explosives, propelling 700 steel balls in a 60-degree radius. Anything within 50 yards of the blast is at risk, with the lethality increasing exponentially as one is closer to the detonation point. The effect resembles the simultaneous discharge of numerous shotguns, creating a unique and devastating impact on the battlefield.

Evolution and Triumph: The M18A1 Claymore’s Impact

The M18 Claymore quickly gained traction, with 10,000 units deployed by 1954. Seeking enhancements, Picatinny Arsenal issued updated requirements, leading to the birth of the M18A1. This upgraded version rectified flaws, doubled the range, and ensured reliability, setting a new standard for directional mines.

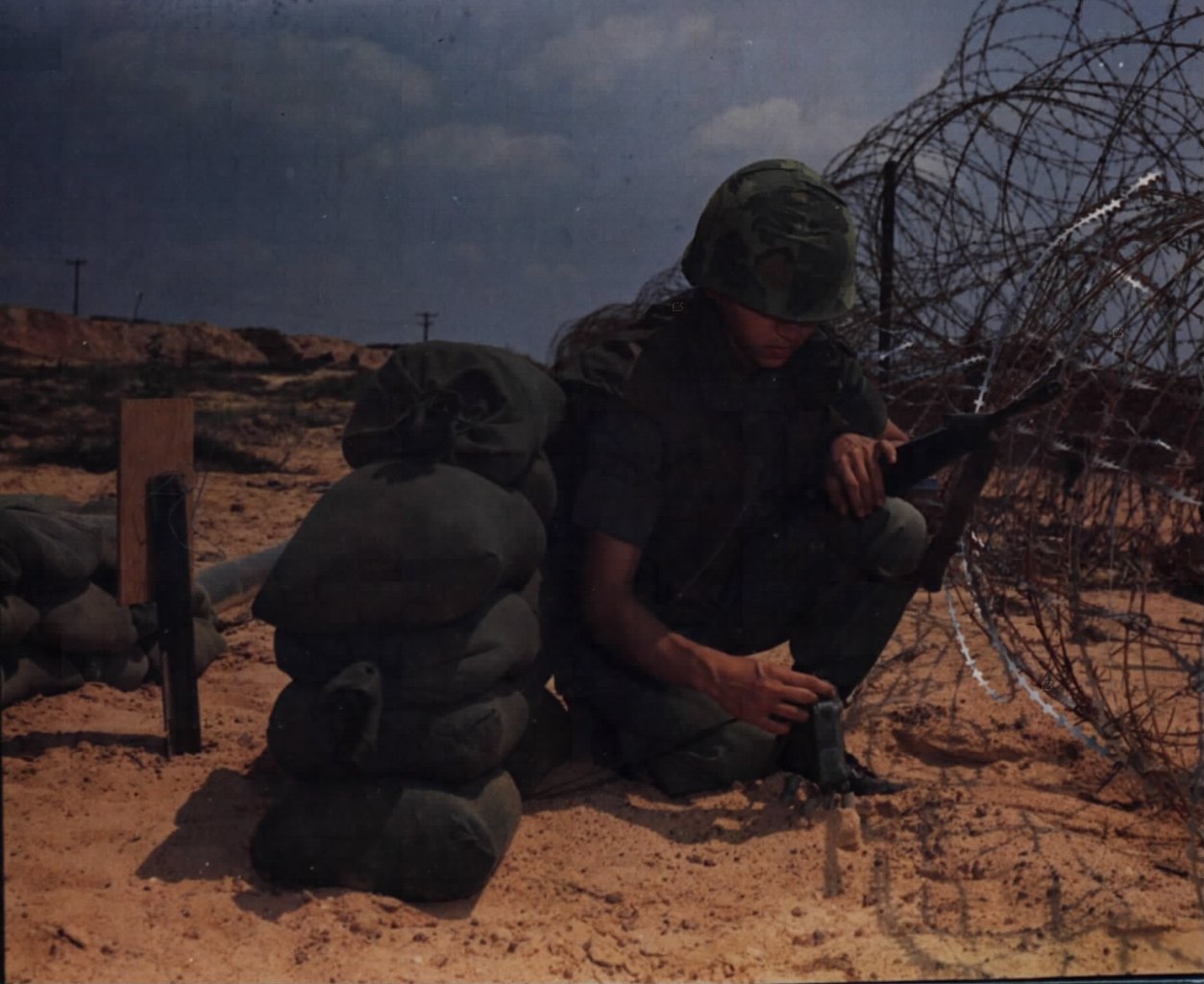

Claymore during Vietnam War — A signal soldier installs a claymore mine on the portion of the defensive perimeter of Long Binh Post circa 1970. (Image source: Wikimedia Commons)

Its impact was felt most significantly during the Vietnam War. Positioned on base perimeters, it thwarted countless assaults by North Vietnamese Army (NVA) and Viet Cong forces attempting to breach the defenses. In many instances, the Claymore was the difference between victory and defeat, as it singlehandedly halted enemy advances. The mine also found utility in the jungle, which played a crucial role in initiating and concluding ambushes. Special Forces extensively deployed Claymores in circular patterns to safeguard their sleeping positions, often attaching them to lower branches of trees to maximize vertical spread.

A critical feature of the Claymore’s success is its user-friendly clacker remote control. While alternatives like tripwires and timers exist, the clacker’s control by a human operator provides an element of decision-making and safety. This human-controlled approach ensures the mine is deployed precisely when needed, preventing accidental detonations.

Conclusion: Timeless Impact and Enduring Relevance

The Claymore’s impact has not waned over time. Its legacy lives on in various copycat designs, such as the Russian MON-50 and Serbian MRUD. Additionally, innovations continue to evolve the concept, leading to smaller variants like the Mini-More produced by the American company Arms Tech Ltd. This compact iteration, one-third the size and weight of its predecessor, is currently used with Special Forces units.

In conclusion, the Claymore mine stands as a testament to the power of innovation in the field of warfare. Its directional explosive force, coupled with its user-friendly design, turned the tide in numerous conflicts. From repelling enemy assaults to initiating ambushes, the Claymore proved its mettle and left an indelible mark on modern military tactics. As history marches forward, Claymore’s legacy remains intact, ensuring its place as a vital tool in the arsenals of armed forces worldwide.
