What is it like to attack from, arm, fly, and maintain one of the world’s most deadly weapons platforms?
The A-10 Thunderbolt II has excellent maneuverability at low air speeds and altitude, and is a highly accurate and survivable weapons-delivery platform. The aircraft can loiter near battle areas for extended periods of time and operate in low ceiling and visibility conditions. The wide combat radius and short takeoff and landing capability permit operations in and out of locations near front lines. Using night vision goggles, A-10 pilots can conduct their missions during darkness.
Thunderbolt IIs have Night Vision Imaging Systems, or NVIS, goggle compatible single-seat cockpits forward of their wings and a large bubble canopy which provides pilots all-around vision. The pilots are protected by titanium armor that also protects parts of the flight-control system. The redundant primary structural sections allow the aircraft to enjoy better survivability during close air support than did previous aircraft. The aircraft can survive direct hits from armor-piercing and high explosive projectiles up to 23mm. Their self-sealing fuel cells are protected by internal and external foam. Manual systems back up their redundant hydraulic flight-control systems. This permits pilots to fly and land when hydraulic power is lost.
The A-10 has received many upgrades over the years. In 1978, the aircraft received the Pave Penny laser receiver pod, which sensed reflected laser radiation from a laser designator. Pave Penney has now been discontinued in favor more capable advanced targeting pods. The A-10 began receiving an inertial navigation system in 1980. Later, the Low-Altitude Safety and Targeting Enhancement (LASTE) upgrade provided computerized weapon-aiming equipment, an autopilot, and a ground-collision warning system. In 1999, aircraft began to receive Global Positioning System navigation systems and a new multi-function display. In 2005, the entire A-10 fleet began receiving the Precision Engagement upgrades that include an improved fire control system (FCS), electronic countermeasures (ECM), upgraded cockpit displays, the ability to deliver smart bombs, moving map display, hands on throttle and stick, digital stores management, LITENING and Sniper advanced targeting pod integration, situational awareness data link or SADL, variable message format, or VMF, GPS-guided weapons, and upgraded DC power. The entire A-10 fleet has been Precision Engagement modified and now carries the A-10C designation.
The Thunderbolt II can be serviced and operated from austere bases with limited facilities near battle areas. Many of the aircraft’s parts are interchangeable left and right, including the engines, main landing gear and vertical stabilizers. Avionics equipment includes multi-band communications; Global Positioning System and inertial navigations systems; infrared and electronic countermeasures against air-to-air and air-to-surface threats. And, it has a heads-up display to display flight and weapons delivery information.
The Thunderbolt II can employ a wide variety of conventional munitions, including general purpose bombs, cluster bomb units, laser guided bombs, joint direct attack munitions or JDAM, wind corrected munitions dispenser or WCMD, AGM-65 Maverick and AIM-9 Sidewinder missiles, rockets, illumination flares, and the GAU-8/A 30mm cannon, capable of firing 3,900 rounds per minute to defeat a wide variety of targets including tanks.
The first production A-10A was delivered to Davis-Monthan Air Force Base, Ariz., in October 1975. The upgraded A-10C reached initial operation capability in September 2007. Specifically designed for close air support, its combination of large and varied ordnance load, long loiter time, accurate weapons delivery, austere field capability, and survivability has proven invaluable to the United States and its allies. The aircraft has participated in operations Desert Storm, Southern Watch, Provide Comfort, Desert Fox, Noble Anvil, Deny Flight, Deliberate Guard, Allied Force, Enduring Freedom and Iraqi Freedom.
Primary function: close air support, airborne forward air control, combat search and rescue
Contractor: Fairchild Republic Co.
Power plant: two General Electric TF34-GE-100 turbofans
Thrust: 9,065 pounds each engine
Wingspan: 57 feet, 6 inches (17.42 meters)
Length: 53 feet, 4 inches (16.16 meters)
Height: 14 feet, 8 inches (4.42 meters)
Weight: 29,000 pounds (13,154 kilograms) Maximum Takeoff Weight: 51,000 pounds (22,950 kilograms) Fuel Capacity: 11,000 pounds (7,257 kilograms)
Payload: 16,000 pounds (7,257 kilograms)
Speed: 450 nautical miles per hour (Mach 0.75)
Range: 2580 miles (2240 nautical miles)
Ceiling: 45,000 feet (13,636 meters)
Armament: one 30 mm GAU-8/A seven-barrel Gatling gun; up to 16,000 pounds (7,200 kilograms) of mixed ordnance on eight under-wing and three under-fuselage pylon stations, including 500 pound (225 kilograms) Mk-82 and 2,000 pounds (900 kilograms) Mk-84 series low/high drag bombs, incendiary cluster bombs, combined effects munitions, mine dispensing munitions, AGM-65 Maverick missiles and laser-guided/electro-optically guided bombs; infrared countermeasure flares; electronic countermeasure chaff; jammer pods; 2.75-inch (6.99 centimeters) rockets; illumination flares and AIM-9 Sidewinder missiles.
Unit cost: $18.8 million
Read More: U.S. Air Force

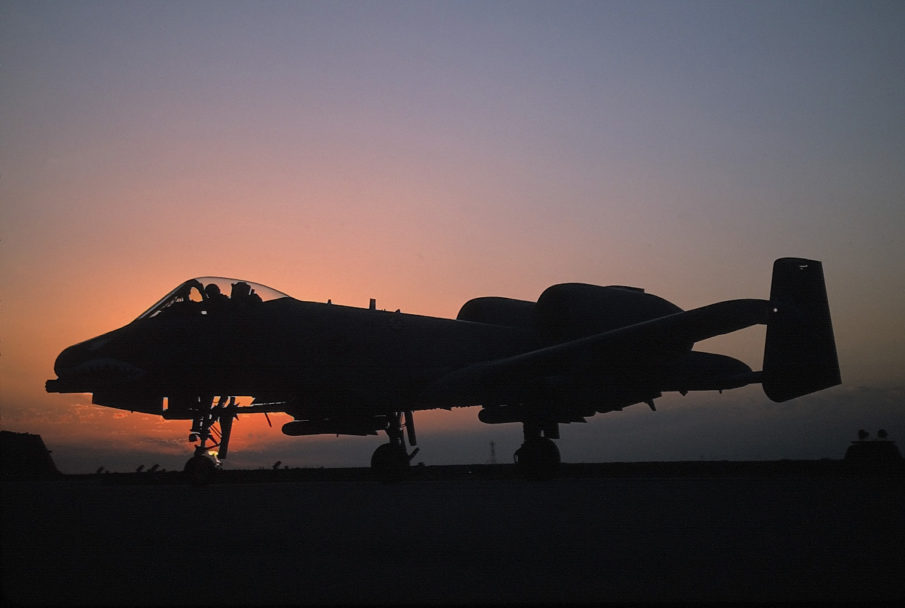

Featured Image – The A-10 Thunderbolt II is the first Air Force aircraft specially designed for close air support of ground forces. They are simple, effective and survivable twin-engine jet aircraft that can be used against all ground targets, including tanks and other armored vehicles. (U.S. Air Force photo by Senior Airman Greg L. Davis)
Featured Media – YouTube: Military and Defense Archive US Crew team loading Fairchild A-10 Thunderbolt II with GBU bombs, AGM-65 Maverick air to ground missiles and bullets/shells for the hyper powerful GAU-8 Avenger 30mm cannon. In this video, you can hear the most famous plane cannon sound aka the “A-10 brrrt” at the end of the video filmed during a training shooting at Air Gunnery Range in northern Michigan against old APC (US made M113) used as a target.
